Nitrided Screw Barrel for Twin Screw Extruder

Nitrided Screw Barrel for Twin Screw Extruder

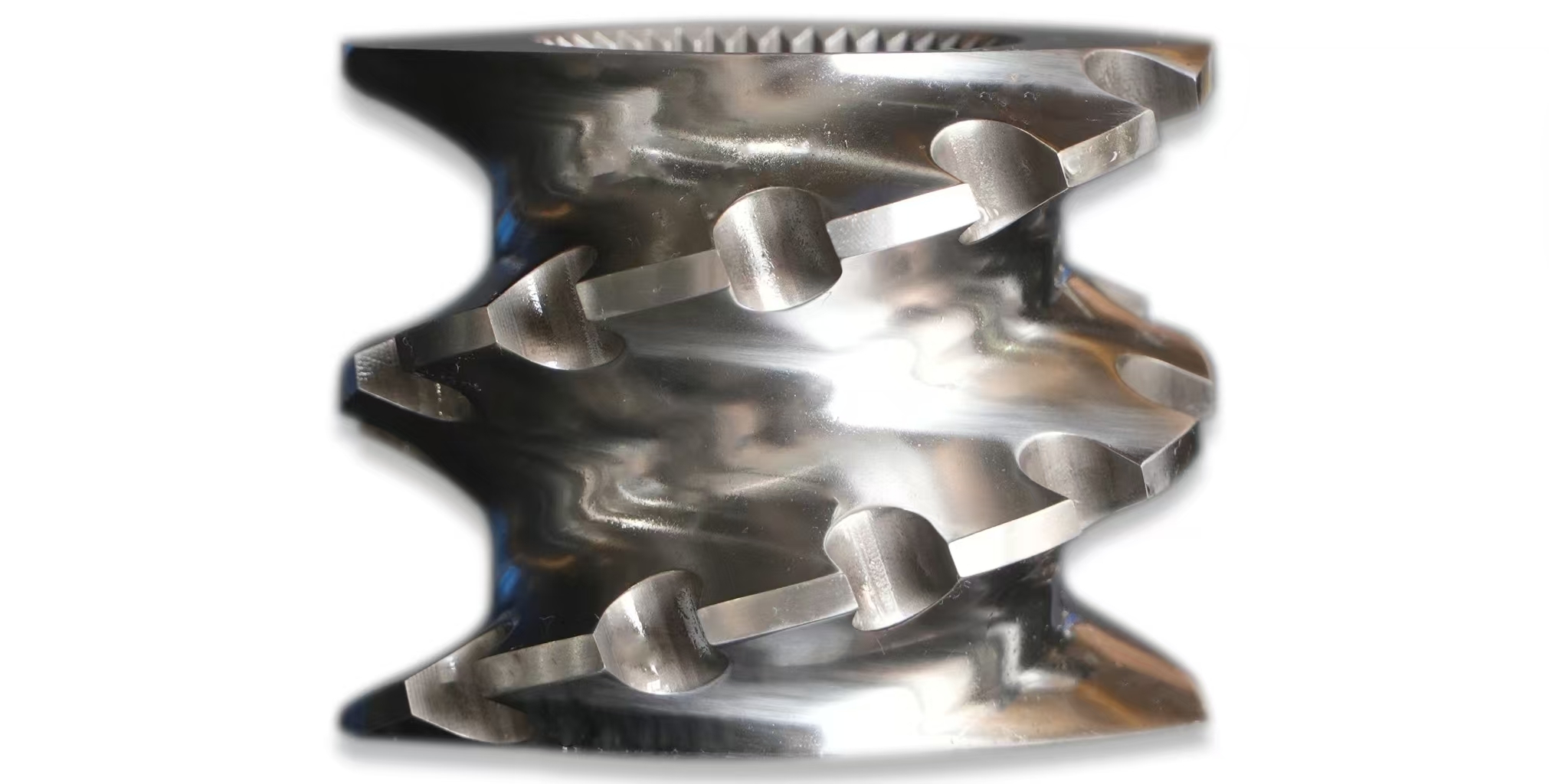

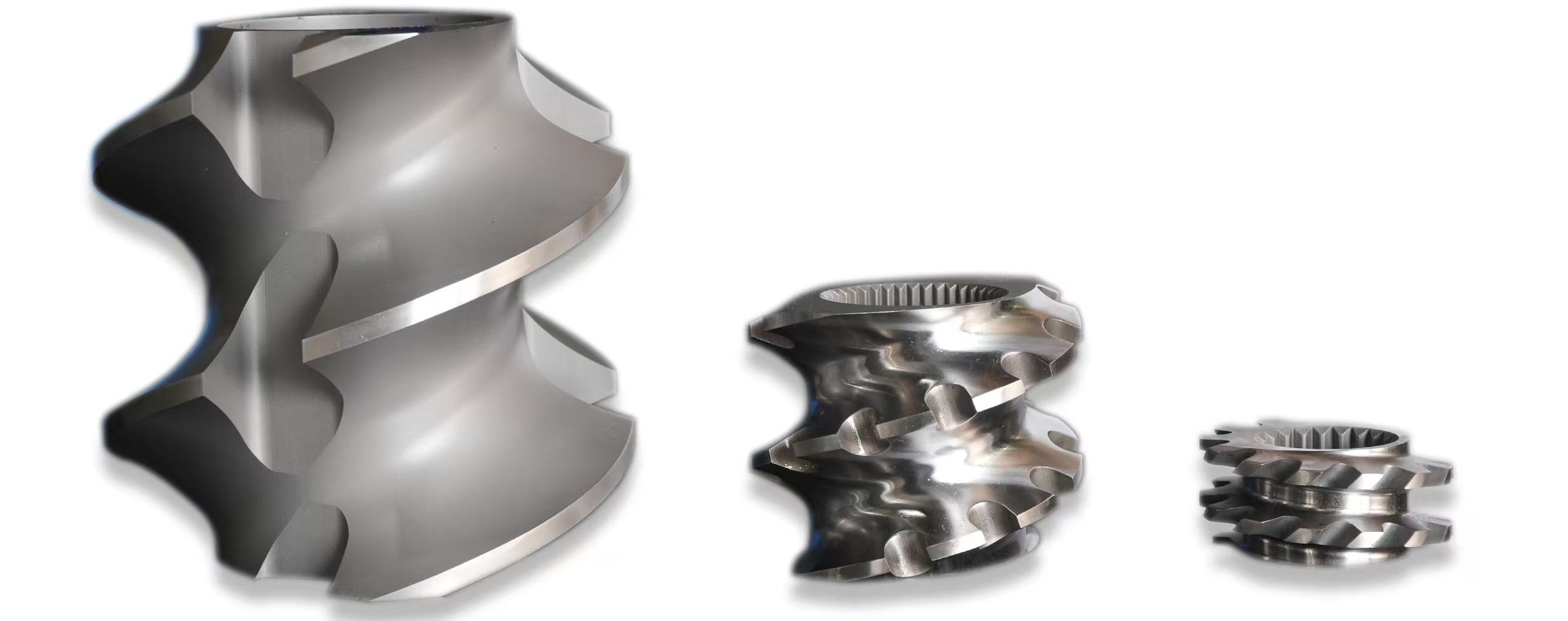

Screw elements

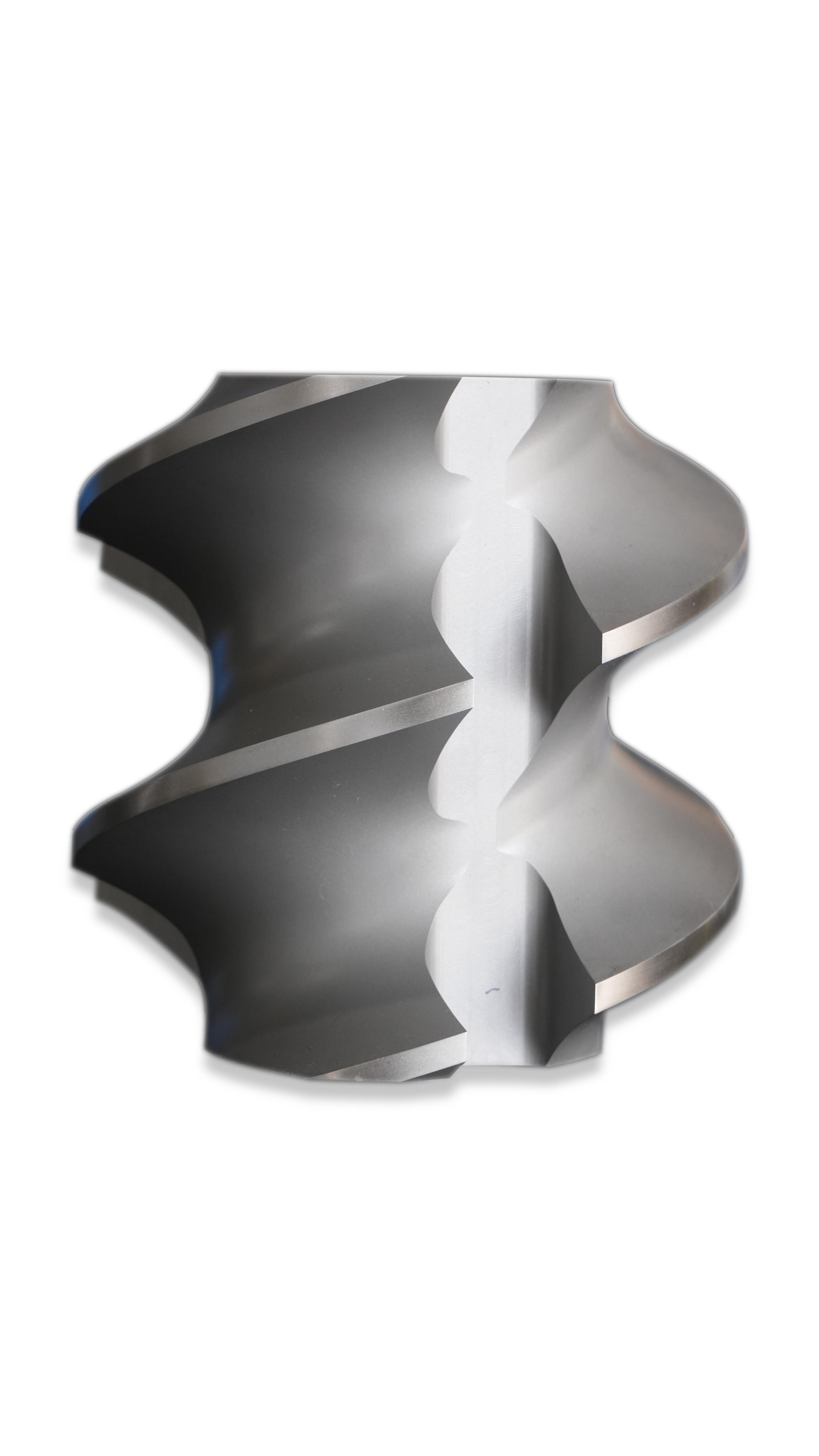

Conveying block: It is the most fundamental helical element, whose primary function is to push the material forward along the axial direction of the screw. Through its helical design, it ensures the uniform conveying of the material within the barrel, providing a foundation for subsequent mixing and shearing operations.
Mechanical parts - Double screw extruder conveying block

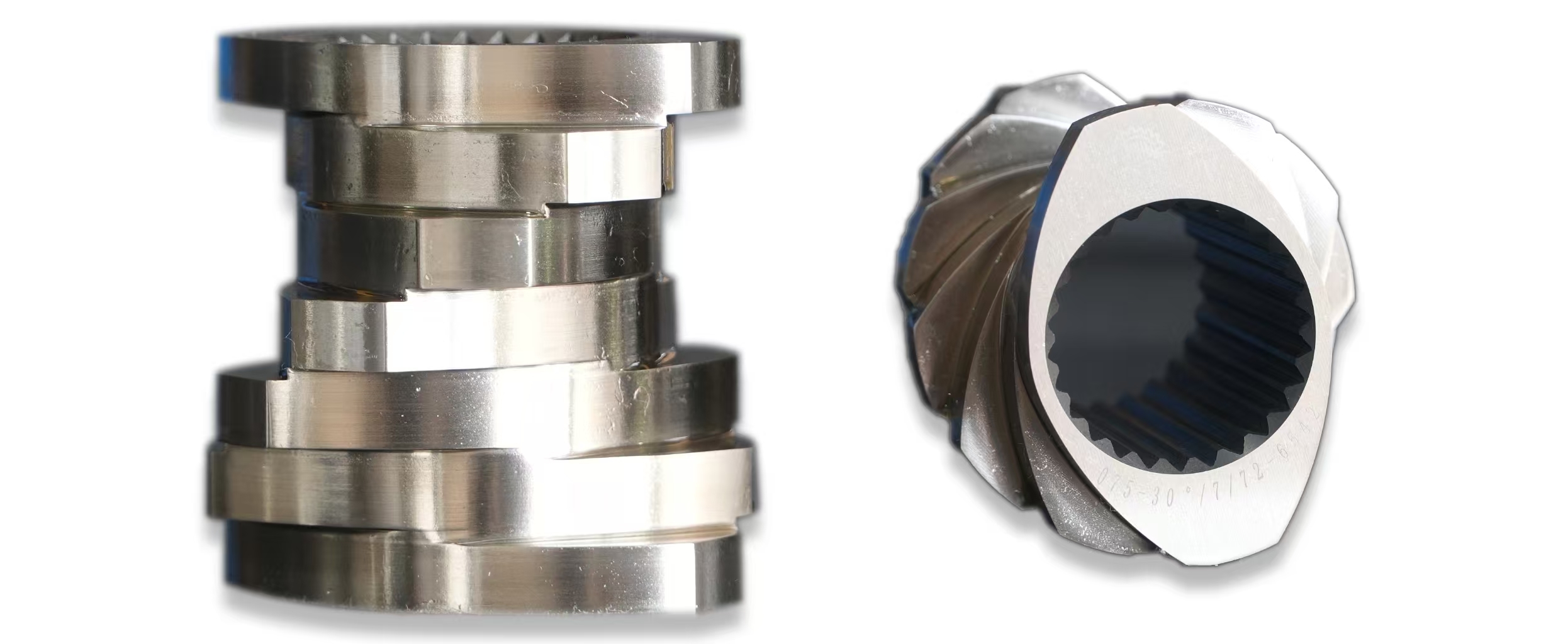

Shearing block (meshing block): It is used to enhance the shearing force of the material. It is usually designed as a series of closely spaced disc-shaped elements, arranged at different angles such as 30 degrees, 45 degrees, 60 degrees, 90 degrees, etc. When the material flows through, it generates a strong shearing force, which can break up particle agglomerates, ensure the uniform distribution of additives, and enhance the mixing effect of polymers.

Sichuan Haimin Technology Co., Ltd. is a professional scientific research and development and manufacturing enterprise of auxiliary equipment and accessories of parallel co-rotating twin-screw extruder. The products include screw elements, barrel, gearbox, side feeder and other core components, accessories and auxiliary machines of parallel co rotating twin-screw extruder.

Haimin's twin-screw extruder accessories have been mature and applied to Coperion, berstroff, leistritz, W & P, JSW, Kobe, Toshiba and other international famous brands.

After years of processing and manufacturing of military products, the company has built an excellent team composed of senior engineers, technologists and experienced employees, established a complete product quality inspection and standardized cultural process, strictly controlled product quality and guaranteed the stability of product quality.

Corporate culture: customer first, teamwork, integrity and responsibility.

Business philosophy: continuous learning, continuous improvement, professional dedication, constantly strive for greater perfection

Product Description
1. All component materials are from domestic first-tier brands or professional European twin-screw molding machine material suppliers, and elemental and metallographic analysis and inspection are carried out to ensure the quality of raw materials.
.2 The quality of components is determined by materials, processing, quenching, etc. Our company provides a wide range of materials: high-speed tool steel W6Mo5Cr4v2, nitrided steel: 38CrMOAl, imported high-corrosion-resistant powder alloy steel: MM60, WR5, WR13, WR14, CPM10V, CPM9V. For other corrosion-resistant environments, we can also provide: 316L, SX737,C276, etc.
3. The professional technical team can not only provide timely and accurate surveying and mapping design of incoming samples, but also provide technical services in component combination;
4. All components are finished using CNC machining to ensure that the component shape and tolerances are consistent with the requirements.

Features

• Select materials carefully
• Not easy to wear
• Stable performance
